2. Second Order Numerical Methods¶

Leapfrog Scheme
- Equations
- von Neumann analysis
Lax-Friedrichs Scheme
- Equations
- von Neumann analysis
Lax-Wendroff Scheme

2.1. Leapfrog Scheme ¶

2.1.1. Equations ¶

For linear convection the schemes we have considered so far are:

Unconditionally unstable (1st order FD in time, 2nd order CD in space)

\[{{u_i^{n+1} - u_i^n} \over {\Delta t}} + c {{u_{i+1}^n - u_{i-1}^n} \over 2\Delta x}=0\]

(1)\[u_i^{n+1} = u_i^{n} - {\sigma \over 2} (u_{i+1}^n - u_{i-1}^n)\]

Introduce numerical diffusion (1st order FD in time, 1st order BD in space)

\[{{u_i^{n+1} - u_i^n} \over {\Delta t}} + c {{u_i^n - u_{i-1}^n} \over \Delta x}=0\]

(2)\[u_i^{n+1} = u_i^{n} - \sigma (u_{i}^n - u_{i-1}^n)\]

For demonstrations of this, see numerical_scheme_1

For the leapfrog scheme, both space and time are discretised by 2nd order CD formulas

\[{{u_i^{n+1} - u_i^{n-1}} \over {2 \Delta t}} + c {{u_{i-1}^n - u_{i-1}^n} \over {2 \Delta x}}=0\]

i.e.

\[u_i^{n+1} = u_i^{n-1} - {{c \Delta t} \over \Delta x} (u_{i+1}^n - u_{i-1}^n)\]

\[u_i^{n+1} = u_i^{n-1} - \sigma (u_{i+1}^n - u_{i-1}^n)\]

where the CFL number is \(\sigma = {{c \Delta t} \over \Delta x}\)

\(u_i^{n+1} \Rightarrow\) New Solution
\(u_i^{n}\) Does not contribute (leapfrogging)
3 time levels in the discretisation
Requires initialisation by using another method - e.g. upwind (a starting scheme)

2.1.2. von Neumann analysis ¶

\[V^{n+1} = V^{n-1} - \sigma V^n(e^{I \phi} - e^{-I \phi})\]

As G is independent of n, write:

\[G = {V^{n+1} \over V^n} = {{V^{n}} \over {V^{n-1}}}\]

Quadratic Equation for G:

\[G - {1 \over G} = - \sigma (e^{I \phi} - e^{-I \phi})\]

Solution:

\[G = I \sigma sin \phi \pm \sqrt{ 1 - \sigma^2 sin^2 \phi }\]

If \(\sigma > 1\) the scheme is unstable, since sqrt term can be negative, thus G pure imaginary and magnitude of G > 0 (e.g. \(\phi = \pi / 2\))
If \(\sigma < 1\) them in sqrt is always real and

\[G.G^* = Re(G)^2 + Im(G)^2 = (1- \sigma^2 sin^2 \phi)+\sigma^2 sin^2 \phi = 1\]

Therefore the scheme is neutrally stable (oscillations will neither grow nor reduce) because the amplification factor is equal to 1 for the convection equation.

Question: would this therefore be useful for analysing ocean waves that have an oscillatory input?

2.2. Lax-Friedrichs Scheme ¶

Introduced in the paper:

Lax P.D. “Weak Solutions of Nonlinear Hyperbolic Equations and Their Numerical Computation”, Communications on Pure and Applied Mathematics (1954)

History:

Peter Lax laid the foundations for the modern theory of non-linear hyperbolic equations and shock wave theory. In 2005 he won the Abel Prize for mathematics.

2.2.1. Equations ¶

The idea of the Lax-Friedrichs scheme is to replace \(u_i^n\) in (1) by the average:

\[u_i^n = {1 \over 2} (u_{i-1}^n + u_{i+1}^n)\]

This will stabilize FD in t / CD in x (Forward Time, Centred Scheme - FTCS)

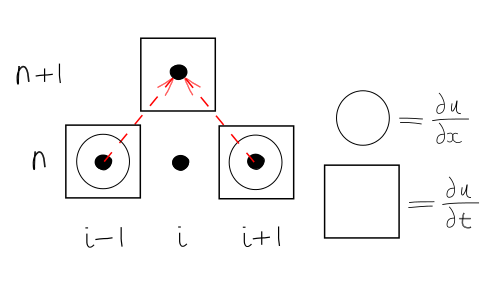

\[u_i^{n+1} = {1 \over 2} (u_{i-1}^n + u_{i+1}^n) - {\sigma \over 2}(u_{i+1}^n - u_{i-1}^n)\]

Substitution introduces an error \(O(\Delta x) \Rightarrow\) Reduces the order of the scheme to first order - however it is now stable (FTCS was unconditionally unstable for the convection equation)

\(u_i^{n+1}\) does not depend on \(u_i^n\)

2.2.2. von Neumann analysis ¶

Insert the following into discretized equation:

\[{V^n} {e^{I \phi}}\]

In the usual way we obtain:

\[G = cos \phi - I \sigma \phi\]

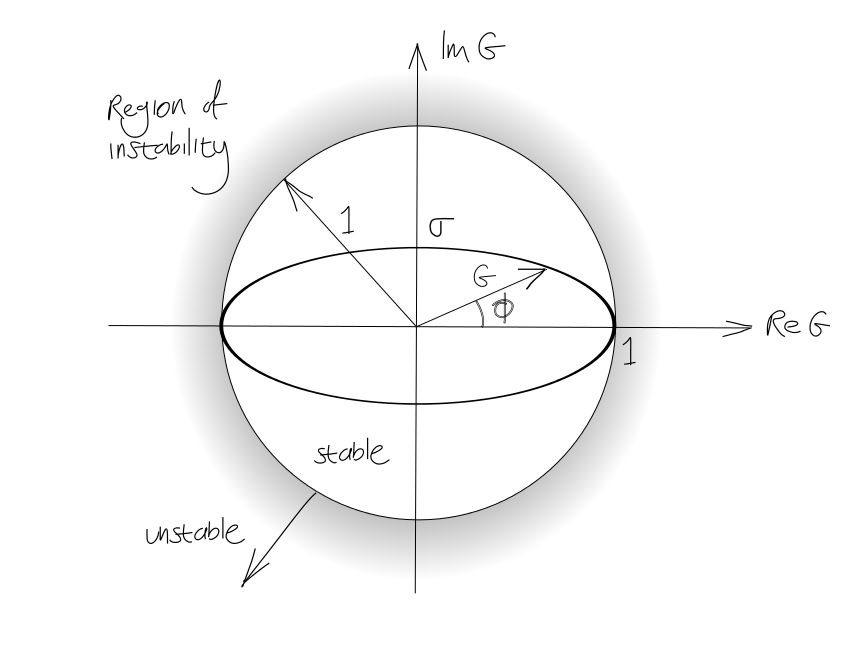

This results in an ellipse in the complex plane

CFL stabilty condition applies, \(\sigma \le 1\)

Question: is this useful for shock wave modelling, because the scheme introduces an artificial viscosity term, i.e. \(1 \over 2\) ?

2.3. Lax-Wendroff Scheme ¶

Introduced in the paper:

Lax, P. and Wendroff, B. “System of Conservation Laws”, Communications on Pure and Applied Mathematics (1960)

The Lax-Friedrichs scheme stabilized FTCS scheme, but introduced an error that was too large, i.e. unacceptable 1st order error.

The Lax-Wendroff scheme was the first scheme introduced that was 2nd order in space and time - with only TWO time levels (unlike the Leapfrog scheme which has THREE)

History: This is a landmark scheme in the history of CFD and was used in aeronautical applications from the 1960s - 1980s

2.3.1. Equations ¶

Procedure

Taylor expansion in time:

(3)\[u_i^{n+1} = u_i^n + {\Delta t}(u_t)_i^n + {\Delta t^2 \over 2} (u_{tt})_i^n + O(\Delta t^3)\]

where:

\[u_{t} = {{\partial u} \over {\partial t}}\]

Keep the second time derivative in the discretisation
Replace the time derivatives by equivalent space derivatives

Application of Procedure

Use convection equation: \(u_t + cu_x = 0 \quad \Rightarrow \qquad u_t = -cu_x\)
Take the time derivative of the convection equation: \(\partial / {\partial t} \quad \Rightarrow \qquad u_{tt} = -c(u_x)_t = -c(u_t)_x = c^2u_{xx}\)
Replace \(u_t\) and \(u_{tt}\) in (3):

\[u_i^{n+1} = u_i^n - c{\Delta t}(u_x)_i^n + {{c^2 \Delta t^2} \over 2} (u_{xx})_i^n + O(\Delta t^3)\]

This has introduced an additional dissipative term \({{c^2 \Delta t^2} \over 2} (u_{xx})_i^n\)

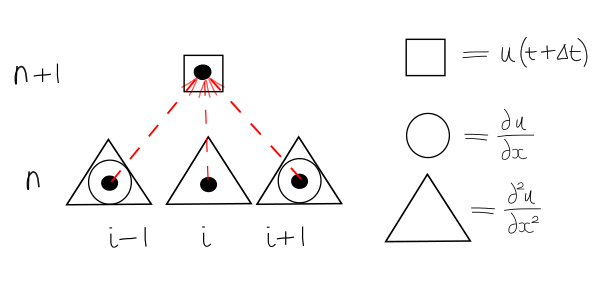

Using CD in x on the Taylor Expansion results in the Lax-Wendroff Scheme:

\[u_i^{n+1} = u_i^n - {\sigma \over 2}(u_{i+1}^n - u_{i-1}^n) + {\sigma^2 \over 2} (u_{i+1}^n - 2u_i^n + u_{i-1}^n)\]

2.3.2. Notes on Lax-Wendroff Scheme ¶

Looking back at the Modified Differential Equation for FTCS
LW scheme is the discretisation of a modified convection equation obtained by adding the lowest order truncation error term:

\[u_t + cu_x + {{\Delta t} \over 2} c^2 u_{xx} = 0\]

LW dominating truncation error is \(\sim u_{xxx}\) and it’s modified differential equation:

\[\bar{u}_t + c \bar{u}_x + {{\Delta t} \over 2} c^2 \bar{u}_{xx} = {{c \Delta x^2} \over 6} \bar{u}_{xxx} + O(\Delta t^2, \Delta x^4)\]

2.3.3. von Neumann analysis ¶

The result is the following amplification factor:

\[G = 1 - {\sigma \over 2} (e^{I \phi} - e^{-I \phi}) + {\sigma^2 \over 2} (e^{I \phi} - 2 + e^{-I \phi}) = 1 - I \sigma sin \phi - \sigma^2(1- cos \phi)\]

Real and imaginary parts:

\[\xi = Re(G) = (1- \sigma^2) + \sigma^2 cos \phi\]

\[\eta = Im(G) = -\sigma sin \phi\]

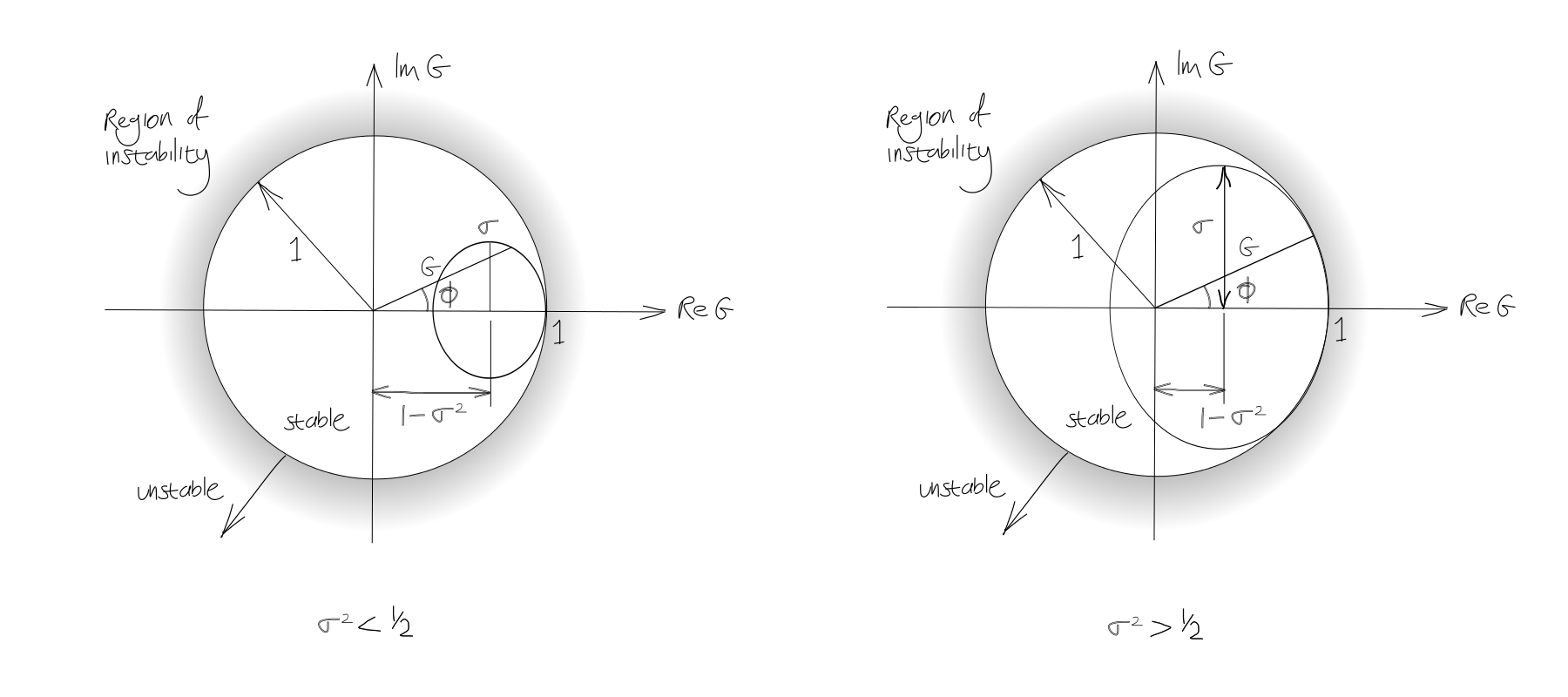

This results in:

Lax Wendroff scheme is stable if \(\sigma < 1\) (CFL condition)
