1.2.1.8. 2D Second-order Non-Linear Convection-Diffusion

1.2.1.8.1. Understand the Problem

  • What is the final velocity profile for 2D non-linear convection-diffusion when the initial conditions are a square wave and the boundary conditions are unity?

  • 2D non-linear convection-diffusion is described as follows:

\[{\partial u \over \partial t} + u {\partial u \over \partial x} + v {\partial u \over \partial y} = \nu \left ( {\partial^2 u \over \partial x^2}+ {\partial^2 u \over \partial y^2} \right )\]
\[{\partial v \over \partial t} + u {\partial v \over \partial x} + v {\partial v \over \partial y} = \nu \left ( {\partial^2 v \over \partial x^2}+ {\partial^2 v \over \partial y^2} \right )\]

1.2.1.8.2. Formulate the Problem

1.2.1.8.2.1. Input Data

  • nt = 51 (number of temporal points)

  • tmax = 0.5

  • nx = 21 (number of x spatial points)

  • nj = 21 (number of y spatial points)

  • xmax = 2

  • ymax = 2

  • nu = 0.1

Initial Conditions: \(t=0\)

x

i

y

j

u(x,y,t), v(x,y,t)

\(0\)

\(0\)

\(0\)

\(0\)

\(1\)

\(0 < x \le 0.5\)

\(0 < i \le 5\)

\(0 < y \le 0.5\)

\(0 < j \le 5\)

\(1\)

\(0.5 < x \le 1\)

\(5 < i \le 10\)

\(0.5 < y \le 1\)

\(5 < j \le 10\)

\(2\)

\(1 < x < 2\)

\(10 < i < 20\)

\(1 < y < 2\)

\(10 < j < 20\)

\(1\)

\(2\)

\(20\)

\(2\)

\(20\)

\(1\)

Boundary Conditions: \(x=0\) and \(x=2\), \(y=0\) and \(y=2\)

t

n

u(x,y,t), v(x,y,t)

\(0 \le t \le 0.5\)

\(0 \le n \le 50\)

\(1\)

1.2.1.8.2.2. Output Data

x

y

t

u(x,y,t), v(x,y,t)

\(0 \le x \le 2\)

\(0 \le y \le 2\)

\(0 \le t \le 0.5\)

\(?\)

1.2.1.8.3. Design Algorithm to Solve Problem

1.2.1.8.3.1. Space-time discretisation

  • i \(\rightarrow\) index of grid in x

  • j \(\rightarrow\) index of grid in y

  • n \(\rightarrow\) index of grid in t

1.2.1.8.3.2. Numerical scheme

  • FD for transient term

  • BD for convection term

  • CD for diffusion term

1.2.1.8.3.3. Discrete equation

\[{{u_{i,j}^{n+1} - u_{i,j}^n} \over {\Delta t}} + u_{i,j}^n {{u_{i,j}^n - u_{i-1,j}^n} \over \Delta x} + v_{i,j}^n {{u_{i,j}^n - u_{i,j-1}^n} \over \Delta y} = \nu {{u_{i-1,j}^n - 2u_{i,j}^n + u_{i+1,j}^n} \over \Delta x^2} + \nu {{u_{i,j-1}^n - 2u_{i,j}^n + u_{i,j+1}^n} \over \Delta y^2}\]
\[{{v_{i,j}^{n+1} - v_{i,j}^n} \over {\Delta t}} + u_{i,j}^n {{v_{i,j}^n - v_{i-1,j}^n} \over \Delta x} + v_{i,j}^n {{v_{i,j}^n - v_{i,j-1}^n} \over \Delta y} = \nu {{v_{i-1,j}^n - 2v_{i,j}^n + v_{i+1,j}^n} \over \Delta x^2} + \nu {{v_{i,j-1}^n - 2v_{i,j}^n + v_{i,j+1}^n} \over \Delta y^2}\]

1.2.1.8.3.4. Transpose

\[u_{i,j}^{n+1} = u_{i,j}^n - \Delta t \left( {u_{i,j}^n \over \Delta x} (u_{i,j}^n - u_{i-1,j}^n)+ {v_{i,j}^n \over \Delta y} (u_{i,j}^n - u_{i,j-1}^n)- \nu {{u_{i-1,j}^n - 2u_{i,j}^n + u_{i+1,j}^n} \over \Delta x^2} - \nu {{u_{i,j-1}^n - 2u_{i,j}^n + u_{i,j+1}^n} \over \Delta y^2} \right)\]
\[v_{i,j}^{n+1} = v_{i,j}^n - \Delta t \left( {u_{i,j}^n \over \Delta x} (v_{i,j}^n - v_{i-1,j}^n)+ {v_{i,j}^n \over \Delta y} (v_{i,j}^n - v_{i,j-1}^n)- \nu {{v_{i-1,j}^n - 2v_{i,j}^n + v_{i+1,j}^n} \over \Delta x^2}- \nu {{v_{i,j-1}^n - 2v_{i,j}^n + v_{i,j+1}^n} \over \Delta y^2} \right)\]

1.2.1.8.3.5. Pseudo-code

#Constants
nt = 51
tmax = 0.5
dt =  tmax/(nt-1)
nx =  21
xmax = 2
ny = 21
ymax = 2
dx = xmax/(nx-1)
dy = ymax/(ny-1)
nu = 0.1

#Boundary Conditions
#u boundary, bottom and top
u(0:20,0,0:50)=u(0:20,20,0:50)=1
#v boundary, bottom and top
v(0:20,0,0:50)=v(0:20,20,0:50)=1
#u boundary left and right
u(0,0:20,0:50)=u(20,0:20,0:50)=1
#v boundary left and right
v(0,0:20,0:50)=v(20,0:20,0:50)=1

#Initial Conditions
u(:,:,0) = 1
v(:,:,0) = 1
u(5:10,5:10,0) = 2
v(5:10,5:10,0) = 2

#Iteration
for n between 0 and 49
   for i between 1 and 19
      for j between 1 and 19
          u(i,j,n+1) = u(i,j,n)-dt*[(u(i,j,n)/dx)*(u(i,j,n)-u(i-1,j,n))+
                                    (v(i,j,n)/dy)*(u(i,j,n)-u(i,j-1,n))-
                                    nu*(u(i-1,j,n) - 2*u(i,j,n) + u(i+1,j,n)) / dx^2 -
                                    nu*(u(i,j-1,n) - 2*u(i,j,n) + u(i,j+1,n)) / dy^2]
          v(i,j,n+1) = v(i,j,n)-dt*[(u(i,j,n)/dx)*(v(i,j,n)-v(i-1,j,n))+
                                    (v(i,j,n)/dy)*(v(i,j,n)-v(i,j-1,n))-
                                    nu*(v(i-1,j,n) - 2*v(i,j,n) + v(i+1,j,n)) / dx^2 -
                                    nu*(v(i,j-1,n) - 2*v(i,j,n) + v(i,j+1,n)) / dy^2]

1.2.1.8.4. Implement Algorithm in Python

def non_linear_convection_diffusion(nt, nx, ny, tmax, xmax, ymax, nu):
   """
   Returns the velocity field and distance for 2D non-linear convection-diffusion
   """
   # Increments
   dt = tmax/(nt-1)
   dx = xmax/(nx-1)
   dy = ymax/(ny-1)

   # Initialise data structures
   import numpy as np
   u = np.zeros(((nx,ny,nt)))
   v = np.zeros(((nx,ny,nt)))
   x = np.zeros(nx)
   y = np.zeros(ny)

   # Boundary conditions
   u[0,:,:] = u[nx-1,:,:] = u[:,0,:] = u[:,ny-1,:] = 1
   v[0,:,:] = v[nx-1,:,:] = v[:,0,:] = v[:,ny-1,:] = 1

   # Initial conditions
   u[:,:,:] = v[:,:,:] = 1
   u[int((nx-1)/4):int((nx-1)/2),int((ny-1)/4):int((ny-1)/2),0] = 2
   v[int((nx-1)/4):int((nx-1)/2),int((ny-1)/4):int((ny-1)/2),0] = 2

   # Loop
   for n in range(0,nt-1):
      for i in range(1,nx-1):
         for j in range(1,ny-1):
            u[i,j,n+1] = (u[i,j,n]+
            -dt*((u[i,j,n]/dx)*(u[i,j,n]-u[i-1,j,n])+
                 (v[i,j,n]/dy)*(u[i,j,n]-u[i,j-1,n]))+
             dt*nu*( ( u[i-1,j,n]-2*u[i,j,n]+u[i+1,j,n] ) /dx**2 +
                     ( u[i,j-1,n]-2*u[i,j,n]+u[i,j+1,n] ) /dy**2 ))
            v[i,j,n+1] = (v[i,j,n]+
            -dt*((u[i,j,n]/dx)*(v[i,j,n]-v[i-1,j,n])+
                 (v[i,j,n]/dy)*(v[i,j,n]-v[i,j-1,n]))+
             dt*nu*( ( v[i-1,j,n]-2*v[i,j,n]+v[i+1,j,n] ) /dx**2 +
                     ( v[i,j-1,n]-2*v[i,j,n]+v[i,j+1,n] ) /dy**2 ))

   # X Loop
   for i in range(0,nx):
      x[i] = i*dx

   # Y Loop
   for j in range(0,ny):
      y[j] = j*dy

   return u, v, x, y

def plot_3D(u,x,y,time,title,label):
   """
   Plots the 2D velocity field
   """

   import matplotlib.pyplot as plt
   from mpl_toolkits.mplot3d import Axes3D
   import numpy as np
   fig=plt.figure(figsize=(11,7),dpi=100)
   ax=fig.gca(projection='3d')
   ax.set_xlabel('x (m)')
   ax.set_ylabel('y (m)')
   ax.set_zlabel(label)
   X,Y=np.meshgrid(x,y)
   surf=ax.plot_surface(X,Y,u[:,:,time],rstride=2,cstride=2)
   plt.title(title)
   plt.show()

(Source code)

u,v,x,y = non_linear_convection_diffusion(311, 51, 51, 0.5, 2.0, 2.0, 0.1)

plot_3D(u,x,y,0,'Figure 1: nu=0.1, nt=51, nx=21, ny=21, t=0sec','u (m/s)')

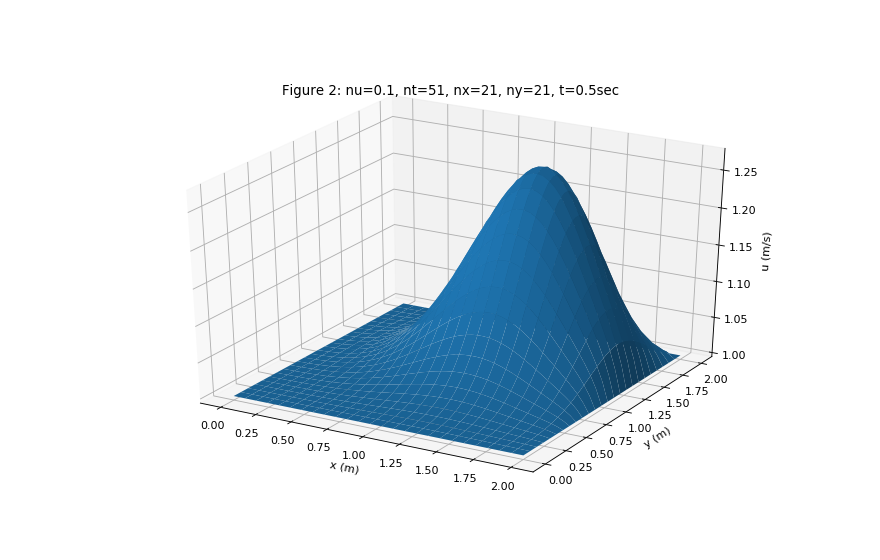

plot_3D(u,x,y,310,'Figure 2: nu=0.1, nt=51, nx=21, ny=21, t=0.5sec','u (m/s)')

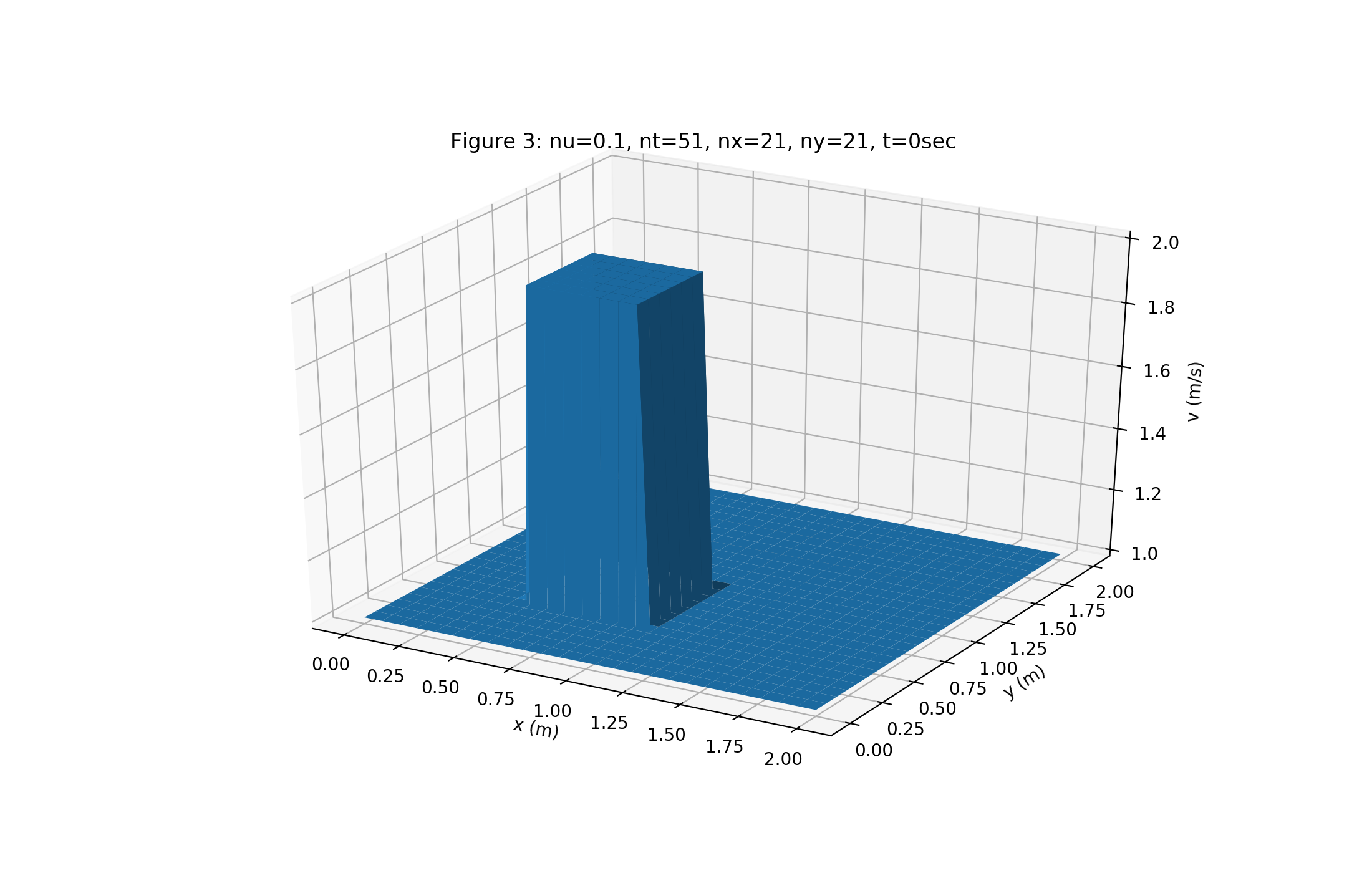

plot_3D(v,x,y,0,'Figure 3: nu=0.1, nt=51, nx=21, ny=21, t=0sec','v (m/s)')

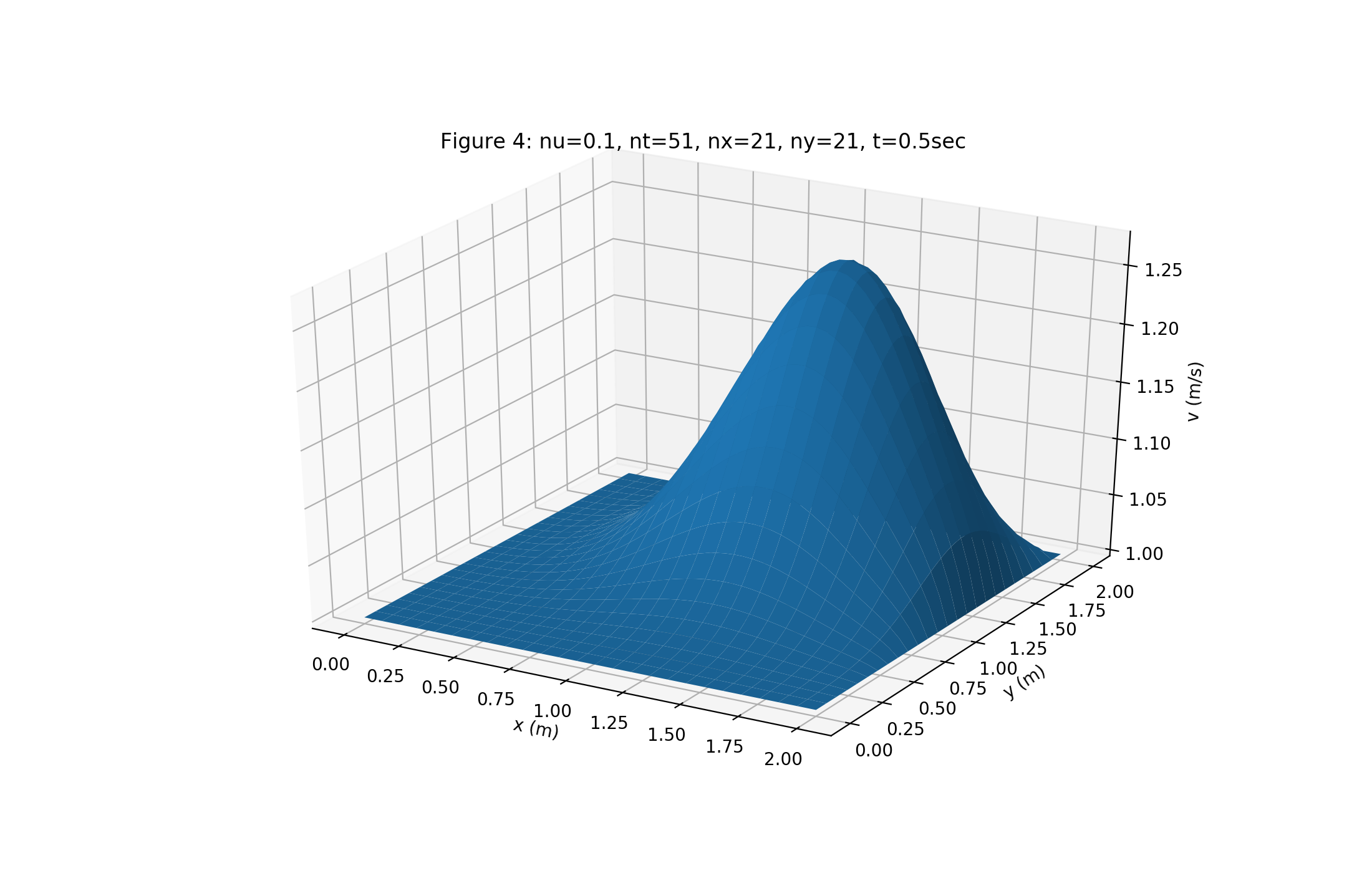

plot_3D(v,x,y,310,'Figure 4: nu=0.1, nt=51, nx=21, ny=21, t=0.5sec','v (m/s)')

1.2.1.8.5. Conclusions

1.2.1.8.5.1. Why isn’t the square wave maintained?

  • This is caused by physical diffusion and numerical diffusion (probably hard to separate these)

1.2.1.8.5.2. Why does the wave shift?

  • As with 1D, the square wave is being convected by the wave speed u and v in 2 dimensions

  • Profiles shift by \(u \Delta t\) and \(v \Delta t\) - compare Figure 1, 2, 3 and 4
